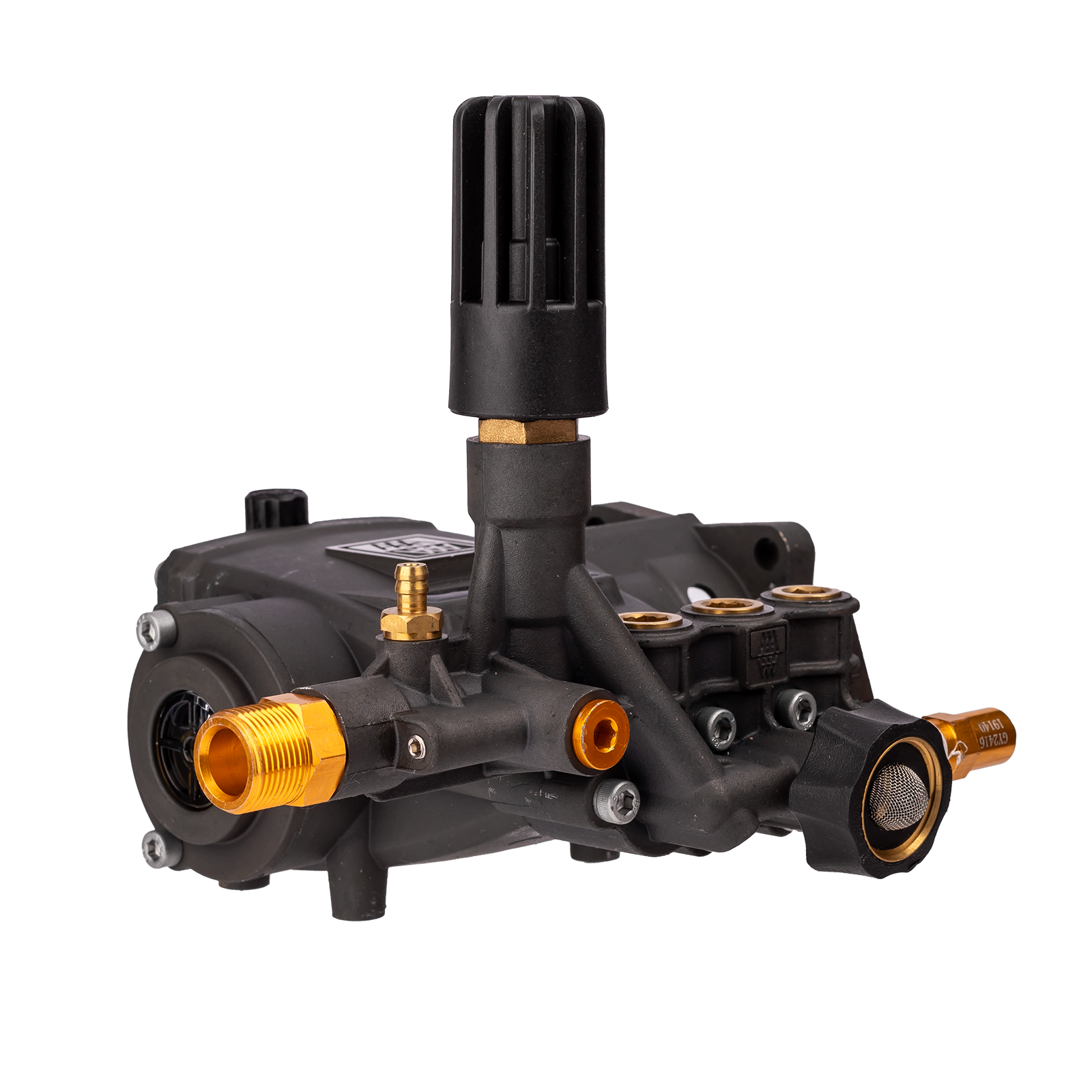

530062 AAA Triplex Plunger 3/4” Shaft Pump 3600 PSI 2.5 GPM
| Part Number | 530062 |
| Brand | AAA |
| Item Weight | 16 lbs |
| Mounting Orientation | Horizontal |
| Part Type | Pressure Washer Pump |
| Max Pressure | 3600 |
| Flow Rate | 2.5 |
| Inlet Size | 3/4” Garden Hose |
| Outlet Size | M22 |
| Shaft Size | 3/4” |
| Bolt Pattern | SAE |
| Drive Key Size | 1” x 3/16” |
| Oil Capacity | 8.0 fl oz. |
The AAA 530062 is a Phoenix CY Series horizontal triplex plunger pump rated at 3,600 PSI and 2.5 GPM, built for direct-drive gas-powered pressure washers with a 3/4" hollow shaft and SAE standard flange bolt pattern. It features a vertical-mounted brass manifold with a horizontal unloader valve, a fully anodized die-cast aluminum crankcase, and ceramic-coated pistons.
Part numbers 530015, 530017, 930017 are other numbers used for the same product as 530062. These are alternative part numbers used to identify this product.
| Alternate Part # | Equivalent To | Status |
|---|---|---|
| 530015 | = 530062 | Same Product |
| 530017 | = 530062 | Same Product |
| 930017 | = 530062 | Same Product |
This part is designed to work with the engine models listed above. Engine compatibility is based on shaft size, bolt pattern, and mounting orientation.
Each cylinder uses a two-stage seal stack to contain pressure around the ceramic plungers. Water inside the manifold head heats rapidly when the pump runs in bypass mode, and extended bypass operation—beyond two minutes—is enough to deform the rubber seals. Compromised seals allow water to escape through the weep holes on the underside of the pump head.
Remove the manifold, inspect the pressure seals for signs of damage and the ceramic plungers for hairline cracks. Replace the damaged components as needed.
The 530062 uses a PowerBoost valve—a spring-loaded needle valve inside the manifold that optimizes nozzle velocity. If sediment bypasses the inlet screen and wedges the needle open, or if the valve's O-rings wear from heat cycling, pressure becomes unstable inside the manifold. This shows up as rapid vibration through the hose and a noticeable drop in cleaning performance.
Remove the powerboost valve and extract all pieces including the spring and spacer. Clean debris and reinsert. If damaged, replace the valve with the 7110117 replacement kit.
The unloader valve seat threads directly into the brass manifold and is sealed with an O-ring. Chemical corrosion or sustained pressure can deteriorate the O-ring or gradually loosen the seat from its threads. Either condition allows pressurized water to bypass the valve, reducing output to little more than standard garden hose pressure.
Remove and inspect the unloader for signs of corrosion or damage. Clean with steel wool and penetrating oil and reinstall. If issue persists, a replacement may need to be purchased.
